Sunday 18 AUGUST 2003 - The Feast of St
Redux
A Big Day- bonding the cockpit module into the bottom
fuselage. A job where you only get one chance to get it right because
once the Redux glue sets nothing will move it. Ian and Irene Rickard kindly
agreed to come and help in return for a few sausages from the barbecue.
It went exactly according to plan, helped by Irene and her icing bags.

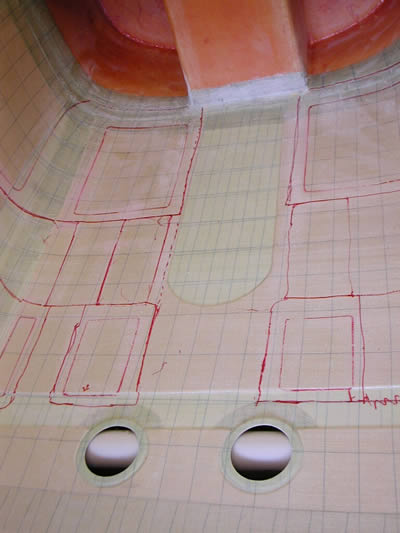

The floor marked out for the
glue |

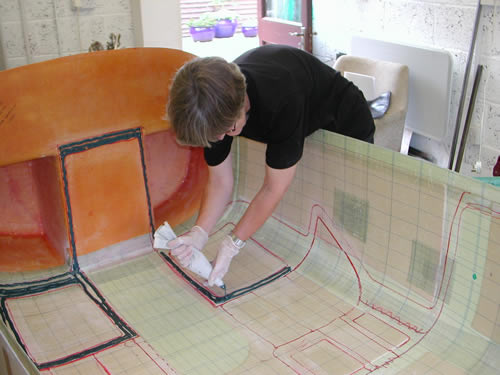

Irene decorating the floor
with Redux icing |
Ian
& Irene having great fun replenishing the icing bag with goop |
The finished module weighted
down |
Thursday 21 AUGUST 2003
A day we shall remember because after weeks of pain
- Peter with toothache and Ian with tennis elbow, we were simultaneously
cured - at separate venues. Peter's root canal treatment and Ian's cortisone
injection meant that we had a painless time today. So we got back into
the swing of being rude to each other, then went out for a curry at very
nice new place in Chobham.
Saturday 30 AUGUST 2003
Peter spent most of the day making two beautiful
floor panels from ply wood. The are very tricky and follow the contours
of the fuselage. They need to have glassfibre lay ups on the underside.
This is a simple lay up and Ian was volunteered to do this. Left them
overnight to cure so they would be really solid.
Sunday 31 AUGUST 2003
Peter's language over the phone was not at all appropriate
for a Sunday morning after he discovered that Ian had laid up the glassfibre
on the TOP of one of the floors instead of the bottom! It was Peter's
fault for not marking the top and bottom. At least we have a perfect template
for the next attempt.
14 SEPTEMBER 2003
After Ian returned from yet another well earned
holiday, Peter had finished the rudder floors and made an excellent job
of them (photo soon). We are now focusing our attention on the undercarriage
and first we need to strengthen the baggage bays which will take the strain.
this is really in case of a heavy landing so it is entirely academic for
two experienced and competent pilots like us ( we wish!). The lay up over
the inside is a nightmare and tests the flexibility of the fabric to its
limits, along with out patience.
End of SEPTEMBER 2003
Worked
on the back end for a couple of weeks. The tailplane torque tube was a
bit of a fiddle to get right, but nothing that our nice new plastic hammer
could not sort out.
|

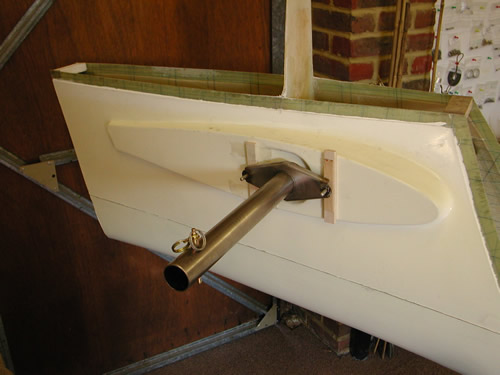

The
tailplane torque tube
|
|

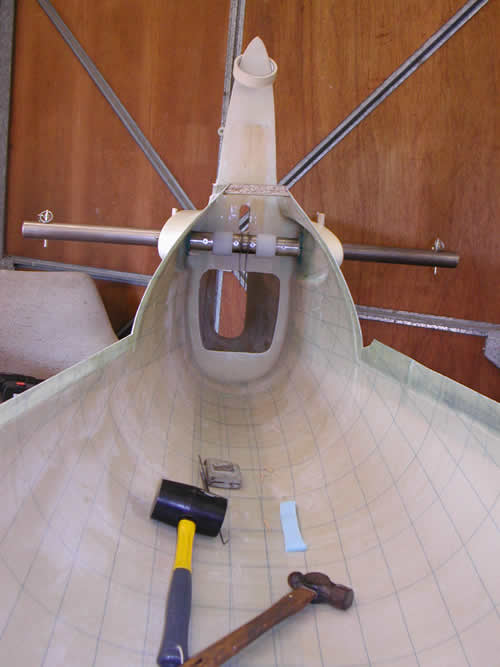

The
rear bulkhead with hammers still to hand |
|
The
trim motor all installed and wired in |
3
OCTOBER 2003
A big day for us. We ordered our engine. a nice
Rotax 912s with a variable pitch propeller. We should get it by the end
of December, so that's our Christmas presents sorted.
9
OCTOBER 2003
Last night Peter broke through the 800 hours total.
His modesty and humility shone through today when he pointed out that
each hour he spends on the plane is worth at least 1.5 hours of Ian's
time. Funny how accountants manage to ratchet up their bills so quickly!
16 OCTOBER 2003
We made a horrible discovery. We thought we had
just about finished the wings, but we were alerted to the fact that the
wing roots were protected by an unusual type of peel ply. This should
have been removed before covering the area with glass cloth and epoxy.
We didn't do this and the whole area now has to be carefully ground out
so we can start again. This will take weeks of hard work. So we are going
down the pub.
